Ringlock Scaffolding is composed with 48x3mm tube, and it is heavy duty from 500-1000kg capacity. It is with high quality Hot-Dip Galvanized and usually appliced in the LED screen DIsplay for Big concerts.
A real look into the Scaffolding Ladder Tower

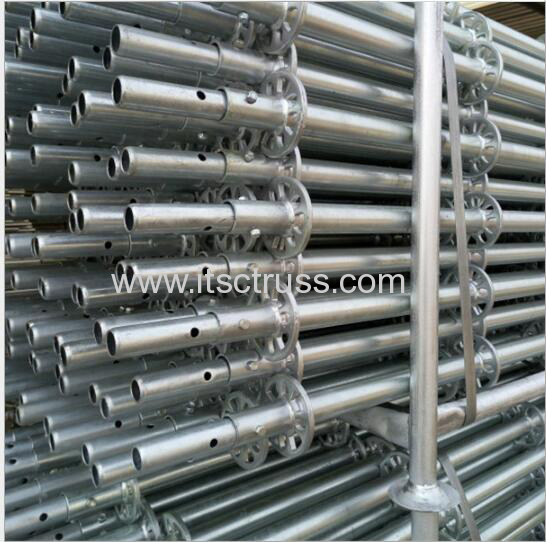

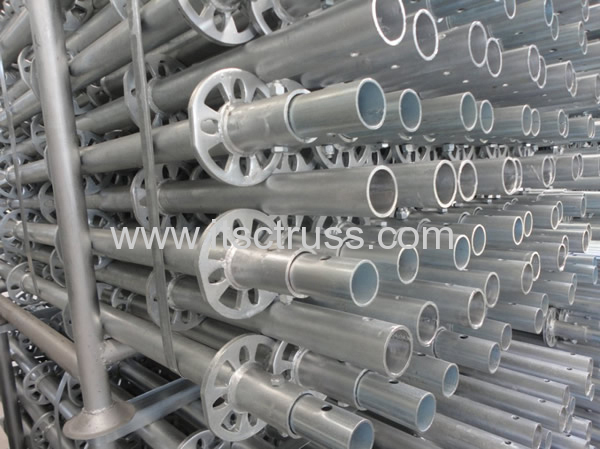

Detail photos
Specification for the scaffolding tubes
| Main tube diameter | 48.3mm |
| Main tube thickness | 3.2mm |
| Ring Thickness | 9.82mm |
| Material | Q345 or Q235 |
| Finished | Hot-Dip Galvanized |
The Pipes are the main parts for the Ringlock Scaffolding and beflow is information for them:
| Horizontal Pipe(L02) | 2400mm*3.5T | ITSC-L02-P24 | 9.41kg |
| 1800mm*3.5T | ITSC-L02-P18 | 7.27kg | |
| 1200mm*3.5T | ITSC-L02-P12 | 5.10kg | |
| 900mm*3.5T | ITSC-L02-P09 | 4.04kg | |
| Diagonal Pipe(L03) | 2400mm(W)*2000(H)*2.3T | ITSC-L03-D2424 | 9.23kg |
| 2400(W)*1500(H)mm*2.3T | ITSC-L03-D2415 | 8.43kg | |
| 1800(W)*1500(H)mm*2.3T | ITSC-L03-D1815 | 7.20kg | |
| Vertical Pipe(L04) | Ò48*3000mm*3.5T | ITSC-L04-V30 | 14.23kg |
| Ò48*2500mm*3.5T | ITSC-L04-V25 | 12.00kg | |
| Ò48*2000mm*3.5T | ITSC-L04-V20 | 9.73kg | |
| Ò48*1500mm*3.5T | ITSC-L04-V15 | 7.33kg | |
| Ò48*1000mm*3.5T | ITSC-L04-V10 | 5.07kg | |
| Ò48*500mm*3.5T | ITSC-L04-V05 | 2.3kg |
Testing the thickness with a tool:
Vivi Photos
Safe and heavy duty with 800kg/sqm
Easy and quick to install in any construction
Profesional Technic Support
Durable and Anti-Corrosive
Versatile application for construction and entertainment events
Fot Ladder Tower
For Mobile Stages Structure
For Working Platform Tower Structure

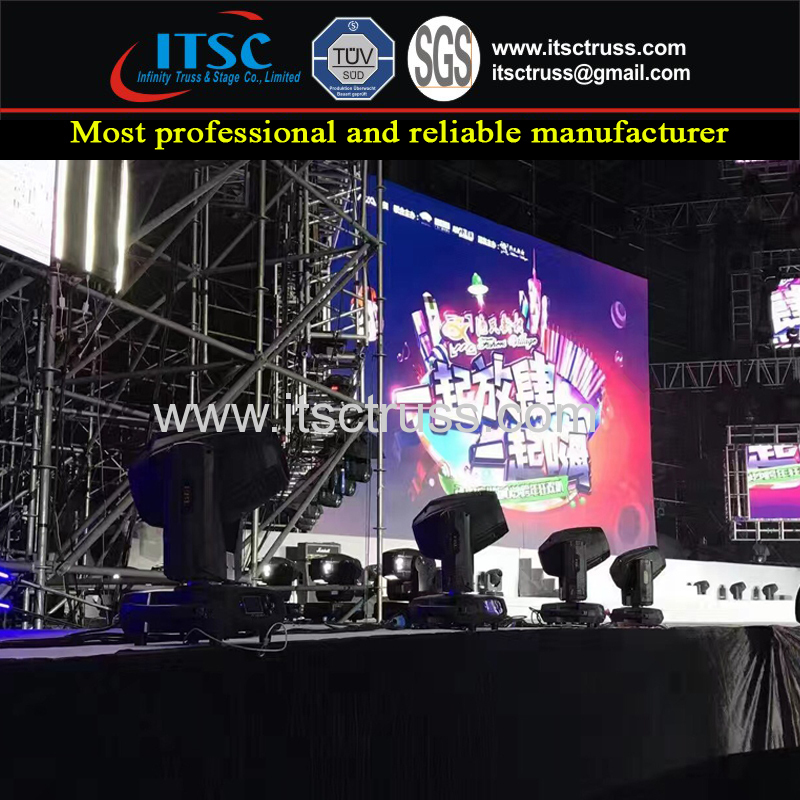

For LED Screen Display and Stage Lighting Backdrop Structure

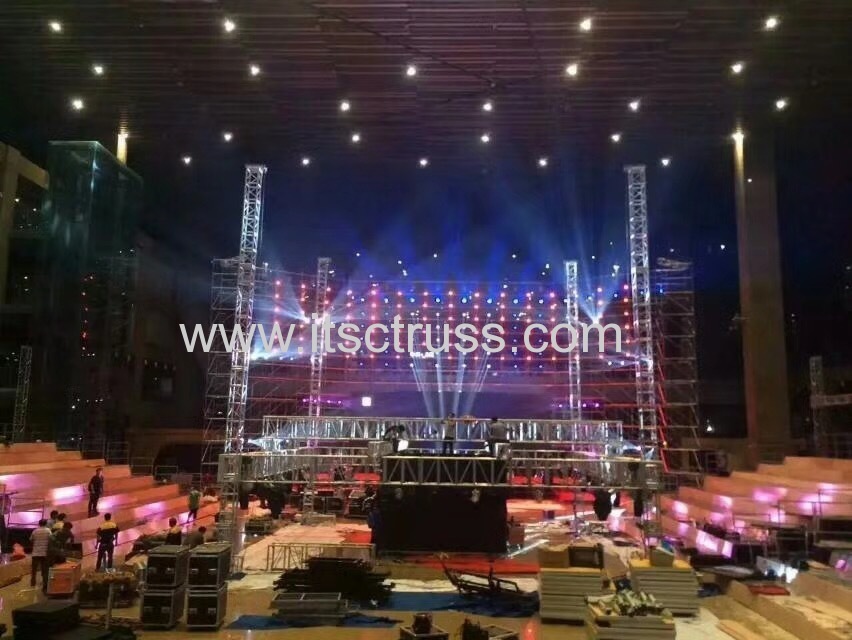

Combined with the Aluminum lighting Trussing and Mobile Staging together for Big Concerts
For Arean Seating Stage System Structure
