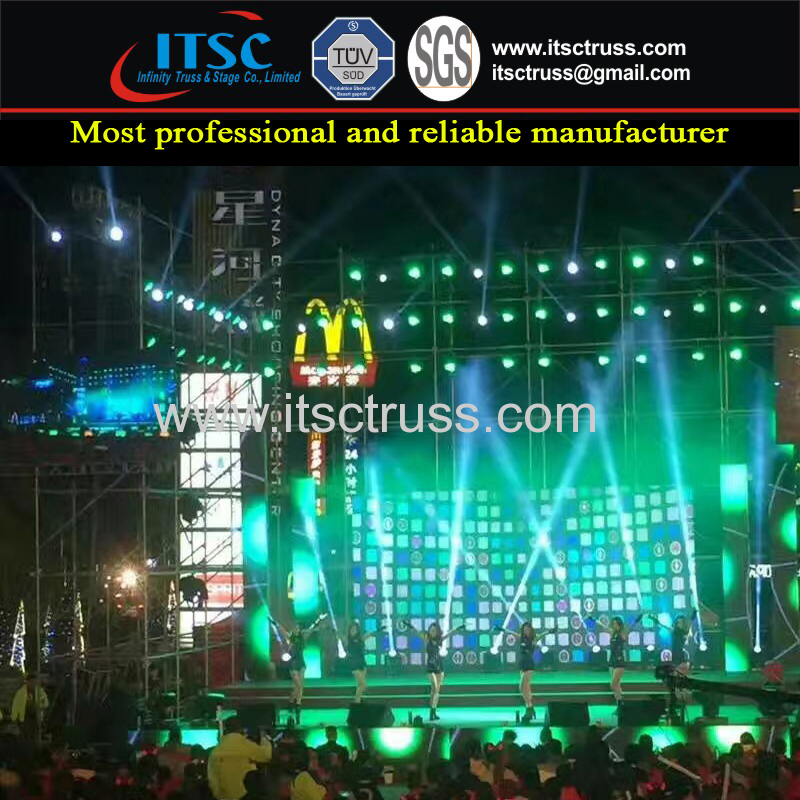

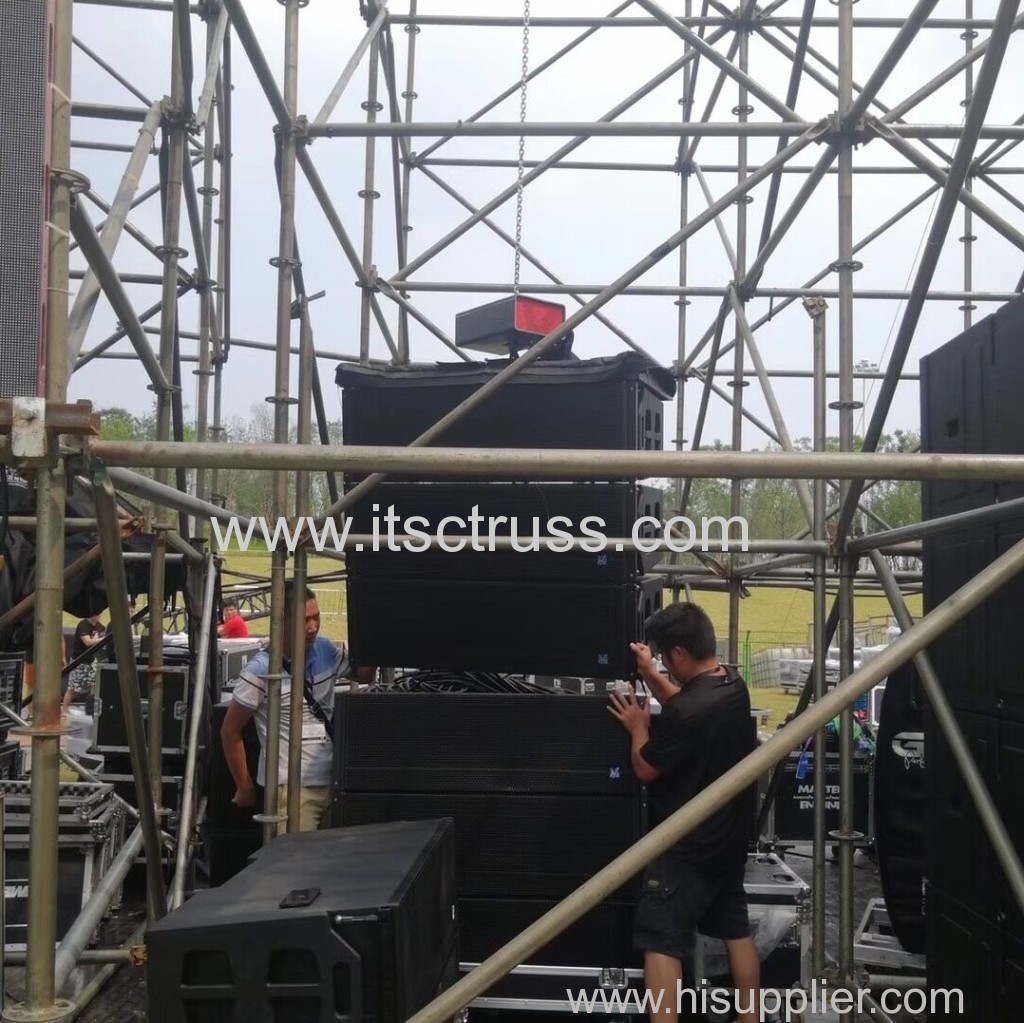

This Scaffolding System is special assembled for hundreds of lighting fixtures for concert. It is 18x10m in dimention. It is combined with speakers and mobile stages together. All the scaffolding is just use the common one in stock.
Main parts :
| Main tube diameter | 48.3mm |
| Main tube thickness | 3.2mm |
| Ring Thickness | 9.82mm |
| Material | Q345 or Q235 |
| Finished | Hot-Dip Galvanized |
The Pipes are the main parts for the Ringlock Scaffolding and beflow is information for them:
| Horizontal Pipe(L02) | 2400mm*3.5T | ITSC-L02-P24 | 9.41kg |
| 1800mm*3.5T | ITSC-L02-P18 | 7.27kg | |
| 1200mm*3.5T | ITSC-L02-P12 | 5.10kg | |
| 900mm*3.5T | ITSC-L02-P09 | 4.04kg | |
| Diagonal Pipe(L03) | 2400mm(W)*2000(H)*2.3T | ITSC-L03-D2424 | 9.23kg |
| 2400(W)*1500(H)mm*2.3T | ITSC-L03-D2415 | 8.43kg | |
| 1800(W)*1500(H)mm*2.3T | ITSC-L03-D1815 | 7.20kg | |
| Vertical Pipe(L04) | Ò48*3000mm*3.5T | ITSC-L04-V30 | 14.23kg |
| Ò48*2500mm*3.5T | ITSC-L04-V25 | 12.00kg | |
| Ò48*2000mm*3.5T | ITSC-L04-V20 | 9.73kg | |
| Ò48*1500mm*3.5T | ITSC-L04-V15 | 7.33kg | |
| Ò48*1000mm*3.5T | ITSC-L04-V10 | 5.07kg | |
| Ò48*500mm*3.5T | ITSC-L04-V05 | 2.3kg |
Testing the thickness with a tool for safety quality.
Assembling
For Mobile Stages Structure
For Working Platform Tower Structure
For LED Screen Display and Stage Lighting Backdrop Structure

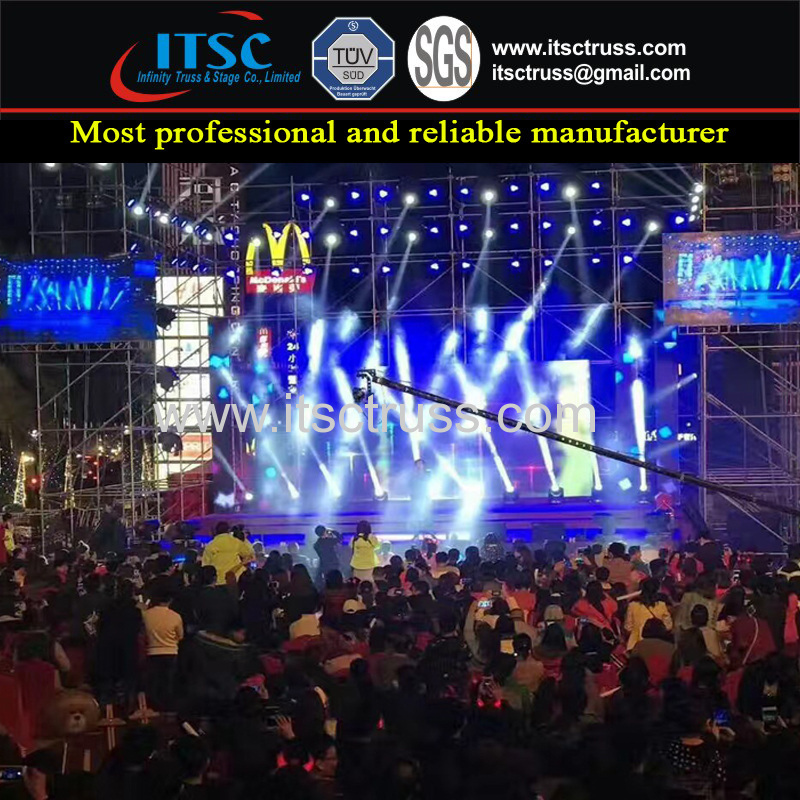

Combined with the Aluminum lighting Trussing and Mobile Staging together for Big Concerts
For Arean Seating Stage System Structure
